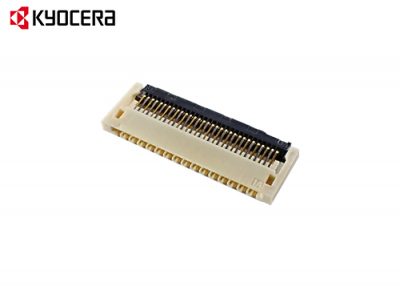

6293 Series | 0.3mm Pitch

Connector Type: FFC / FPC
Technology: Fine Pitch
# of Positions: 9-39
Current Rating AC/DC 0.2A
Voltage Rating: AC/DC 50V
Operating Temperature: -40°C to +85°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 6293 Category:

Description

Overview:

6293 Series | 0.3mm Pitch

The 6293 Series are low profile, space-saving FPC Connectors which feature a pitch of 0.3mm, height of 0.85mm, and width of 3.7mm for mounting areas. These products are dual-sided contact, LIF, right angle, SMT type connectors.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Dual-sided contact enhances flexibility in pulling the FPC.
  • Connectors are delivered with open actuators for increased workability.
  • RoHS compliant
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +85°C
Typical Applications:
Typical Applications:
  • Smartphone/Tablet PC
  • Wearable Device
  • Laptop
  • Audio equipment
  • Gaming Equipment
