6810 Series | 0.5mm Pitch

6810 Series | 0.5mm Pitch

One-touch locking 6810 Series connectors utilize a proprietary structure that enables quick, stable connections in a single insertion, removing a significant impediment to fully automated assembly. Specifically designed to support automated optical inspection (AOI) for high-speed quality assurance, these connectors offer a valuable opportunity to enhance productivity in electronics manufacturing.

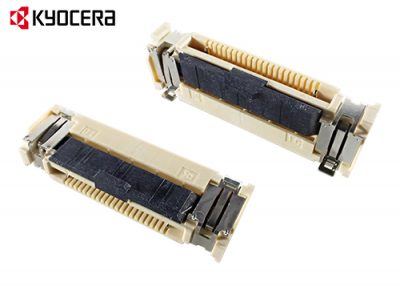

6810 Series connectors are available in two configurations: a vertical type that mounts perpendicular to the circuit board for vertical insertion, and a right-angle type mounting parallel to the board for horizontal insertion.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• Optimized for high-speed robotic assembly processes
• Straight and right-angle configurations enhance design flexibility
• Packaged in tape and reel: 1,200 pieces/reel (Vertical type), 1,500 pieces/reel (Right angle type)
• Contact Material: Copper alloy
• Insulator Material: Heat-resistant plastic
• Operating Temperature Range: -40 to +125°C (Heat resistant type), -40 to +85°C (General type)

• Automobile (Driving/Safety Equipment)
• Automobile（Infotainment）
• Industrial Equipment
• Power supplies
