6811 Series | 0.5mm Pitch

Connector Type: FFC / FPC
Technology: Fine Pitch
# of Positions: 4-16
Current Rating DC 0.5A
Voltage Rating: DC 50V
Operating Temperature: -40°C to +85°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 6811 Category:

Description

Overview:

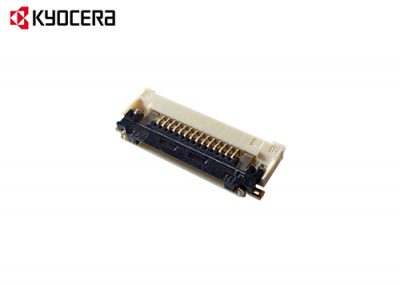

6811 Series | 0.5mm Pitch

The 6811 Series possess enhanced robustness after implementing measures aimed at reducing breakage of connectors caused by human error. These low profile products feature a pitch of 0.5mm, bottom contact, front-lock type with a height of 1.28mm for mounting area, and can be applied to FPC/FFC thicknesses of 0.3mm.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Saves space with its low pitch of 0.5mm and height of 1.28mm.
  • Robust design preventing unlocking of actuators
  • Actuator locks FPC/FFC with tabbed cables
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +85°C
Typical Applications:
Typical Applications:
  • Smartphone/Tablet PC
  • Laptop
  • Audio equipment
  • Gaming Equipment
  • Industrial Equipment
  • Flat TV
