6844 Series | 0.3mm Pitch

Connector Type:	FPC / FFC
Technology:	Fine Pitch
# of Positions:	11-61
Current Rating	DC 0.2A
Voltage Rating:	DC 50V
Operating Temperature:	-40°C to +85°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 6844 Category: Connectors

Description

Overview:

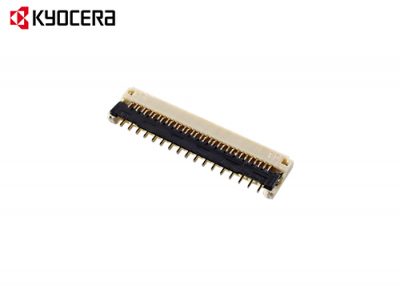

6844 Series | 0.3mm Pitch

The 6844 Series are light, compact FPC Connectors featuring a pitch of 0.3mm, height of 0.95mm on board, and width of 2.7mm in the mounting space. Despite their slim designs, these connectors feature accurate positioning for secure mating as well as good operability, and provide a nice “click” feeling in the locking system.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Space-saving is greatly achieved with a fine pitch 0.3mm
Provides a nice “click” feeling when locked
Applicable FPC thickness is 0.2mm.
Contact Material: Copper alloy
Insulator Material: Heat-resistant plastic
Operating Temperature Range: -40 to +85°C

Typical Applications:

Smartphone/Tablet PC
Wearable Device
Laptop
Audio equipment
Gaming Equipment

P/N Information

» Click to View
