9177-000 Series | Standard IDC Connectors (14-20 AWG)

9177-000 Series | Standard IDC Connectors (14-20 AWG)

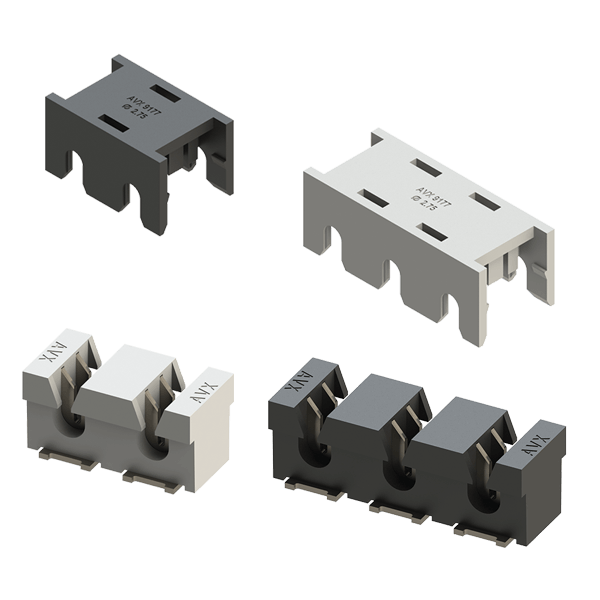

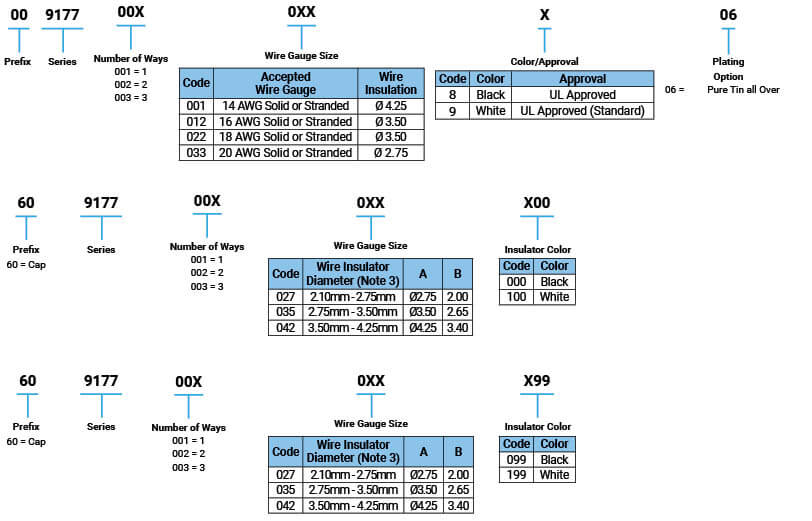

The 9177 series accepts 14 AWG to 20 AWG wires with an insulation diameter ranging from 2.75mm to 4.25mm. These dual contact connectors support a 15 amp current rating with two large SMT solder tails per wire to provide maximum stability on the PCB. Available in 1p-3p configuration, these connectors can be end stackable for higher pin counts.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• IDC contact provides a gas-tight connection to the PCB for long term reliability
• Connector housing captures the wire insulation for positive strain relief
• Tested to automotive levels on shock, vibration and temperature cycling for reliability
• Low and high volume assembly tools to match production volumes
• Reduced total applied cost versus solder or crimp processes
• High temperature insulator capable to 260ºC reflow soldering processes

• Connecting discrete wire components directly to the PCB
• Bringing power and signals onto a PCB
• Daisy chaining PCB’s together to create a continuous string of boards
