7129 Series | Battery Connector

Connector Type:	Board to Board (BtB)
Technology:	Fine Pitch
# of Positions:	2, 4
Current Rating	Signal: DC 0.4A/Contact Power: DC 10A/2Contacts
Voltage Rating:	DC 30V/Contact
Operating Temperature:	-40°C to +85°C
Industries:	Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace

Download Datasheet

SKU: 7129 Category: Connectors

Description

Overview:

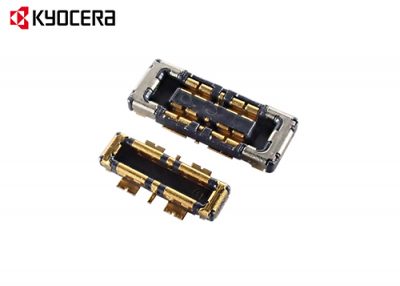

7129 Series | Battery Connector

The 7129 Series is board to board connector which is capable of conducting high current up to 10A. In addition to it being a space-saving product with 0.7mm stacking height and a 2.2mm in width, it achieves high robustness and smooth mating by attaching metals on both side-ends to prevent damage to insulator housings and contacts due to mating in a misaligned way.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

Features & Benefits:

Contact Material: Copper alloy
Insulator Material: Heat-resistant plastic
Operating Temperature Range: -40 to +85°C
RoHS compliant and Halogen-free
Packaged in tape and reel: 15,000 pieces/reel
Space saving with stacking height of 0.7mm and a width of 2.2mm
