8005 Series | Miniature Wire to Board Connectors

Connector Type: Wire to Board (WtB)
Technology: Fine Pitch
# of Positions: 2
Current Rating DC 1.0A/Contact
Voltage Rating: DC 30V/Contact
Operating Temperature: -55°C to +80°C
Industries: Automotive, Medical, Industrial, IoT, Consumer, Transportation / Commercial Vehicles, Data / Telecom, Mobile Devices, Military / Aerospace
SKU: 8005 Category:

Description

Overview:

8005 Series | Miniature Wire to Board Connectors

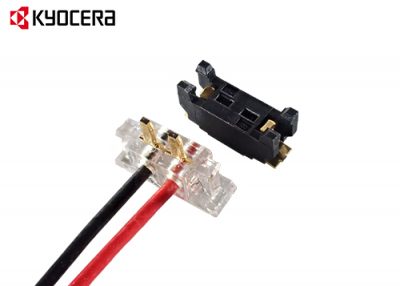

The 8005 Series are super compact, 2-pin Wire to Board Connectors designed for high-density mounting. These products are most suitable for miniaturization of hand-held devices such as mobile phones, notebook PCs, etc.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Equipped with an insulator locking structure
  • Right angle receptacle is a low profile type featuring a height of 1.9mm on the board.
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -55 to +80°C
Typical Applications:
Typical Applications:
  • Smartphone/Tablet PC
  • Wearable Device
  • Laptop
  • Audio equipment
  • Gaming Equipment
