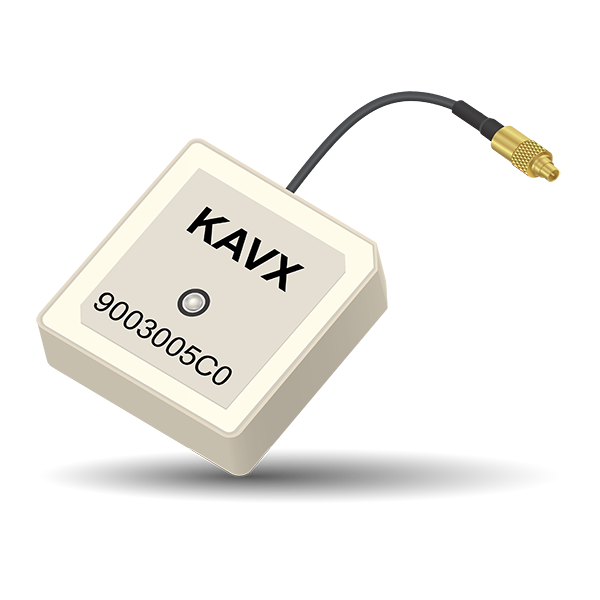

9003005C0 – Wi-Fi / Bluetooth / Zigbee Ceramic Patch 2.4 GHz Antenna

Antenna Type:Internal (On Board)
Technology:BLE, Bluetooth, WiFi, WLAN, ZigBee
Peak Gain:2.5dBi
Average Efficiency:65%
Size (mm):25.0 x 25.0 x 4.0
Weight (grams):10.0
Mounting:Cable + Connector
Antenna P/N:9003005C0
SKU: 9003005C0 Category:


KYOCERAAVX’s 9003005C0 is a 2.4GHz ceramic patch antenna with high efficiency on all frequency bands. This antenna delivers good functionality and performance and provides compelling advantages to the device designers for their Wi-fi enabled applications. This antenna has 60mm cable terminated in a MMCXST-Plug (male) connector..

Real-World Performance and Implementation

Circularly Polarized patch antennas are designed to maintain high efficiency in a variety of device configurations. High selectivity eliminates the need for additional filters and frees up board space.
