9155-200 Series | Battery – Reduced 2.5mm Pitch

9155-200 Series | Battery – Reduced 2.5mm Pitch

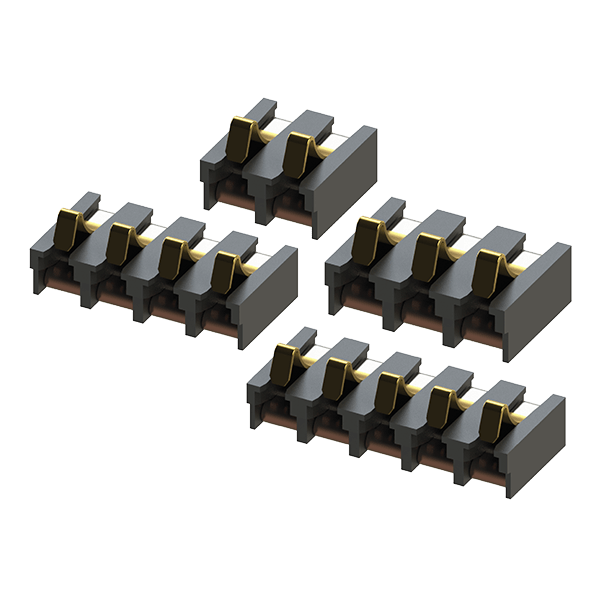

The newest product in AVX’s Interconnect family of battery connectors saves 50% in volume over the initial 9155 series compression connectors as illustrated in the photograph. These connectors are rated at a full 3 amps per contact on 2.5mm centers. Sizes range from 2 positions through 5 positions and are end to end stackable.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• 2.4mm insulator height
• 3 amps/contact
• Large SMT mounting area for positive mechanical attachment
• 5k mating cycles
• End-to-end stackable

• Cellular Phones
• Handheld Devices
• Industrial Modules
• Medical Electronics

• 1 Piece Compression Overview
• Reduced Profile Battery Connector 9155-200
