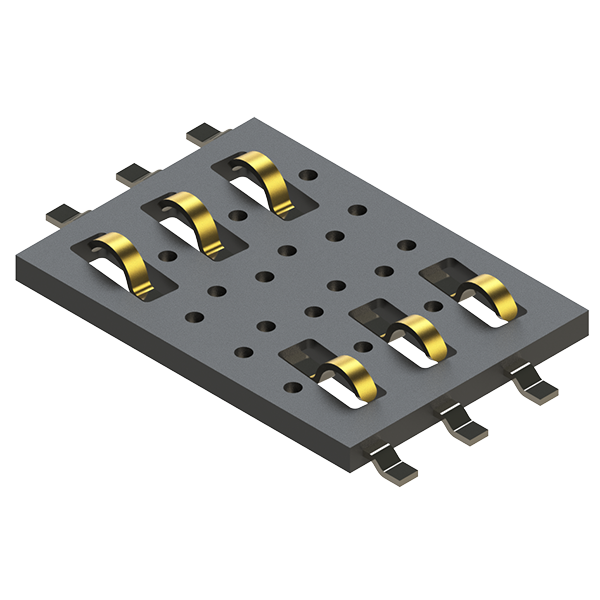

9162-000 Series | SIM Card Connector

9162-000 Series | SIM Block

The standard SIM connector is specifically designed for handheld devices requiring secure subscriber identification. The connectors are available in a standard 6 pin configuration on a 2.54mm pitch with a 0.8mm height. Contacts are stamped, gold plated, rated at 0.5A, and 5000 mechanical cycles. Our contact design is specifically rounded to avoid any possible damage during and after card insertion to the card itself, assuming normal use. The design also incorporates protection features to avoid contact damage during this operation such as contact snagging. Please contact the appropriate sales office for further details.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• Produced for use with both full ISO cards and mini SIM cards
• The insulator is molded from high temperature plastic enabling the connector to be used in convection or infrared soldering processes
• Supplied on tape and reel packaging for pick and place assembly
• RoHS Compliant

• Cellular Phones
• Radios
