9162-500 Series | SIM/Micro SD Combination

Connector Type: Ethernet, FFC / FPC, Specialty, Board to Board (BtB), Wire to Board (WtB), Wire to Wire (WtW)
Technology: Insulation Displacement (IDC), Poke-Home, 2-Piece, Card Edge, Compression / Battery, Memory, Input/Output (I/O), Fine Pitch, Splice, DIN, Rack & Panel, Single-Pair Ethernet (SPE), Shield Locks
# of Positions: 6
Current Rating 0.3A / Contact
Voltage Rating: 15 VAC
Operating Temperature: -55°C to +70°C
Industries: Industrial, Consumer
SKU: 9162-500 Category:

Description

Overview:

9162-500 Series | SIM/Micro SD Combination

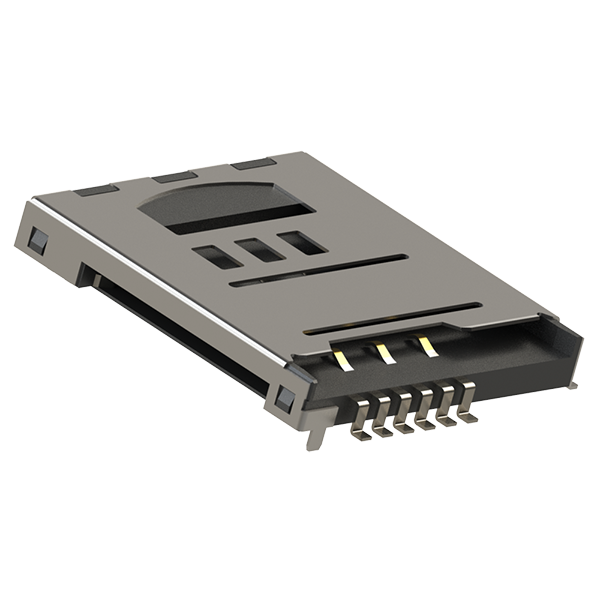

The SIM/Micro SD Combination: 9162-500 is a six position slide-in SIM connector and push-push microSD connector. This product allows two cards to be inserted into the same connector, and there is a card detect switch on the microSD.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.
Features & Benefits:
Features & Benefits:
  • Space saving connector combination
  • Integrates 2 connectors into 1
  • Contact Plating: Gold
  • Insulator molded from LCP UL94 V-O
  • Low profile 1.50mm to SIM
  • 2.70mm connector height
Typical Applications:
Typical Applications:
  • Cellular Phones
  • Radios
