9286-000 Series | Poke-Home – Thru-Wire

9286-000 Series | Poke-Home – Thru-Wire

The 9286 series of Thru-Wire connectors provides a high spring force Beryllium Copper contact system that uses simple push button activation to insert and remove individual stripped wires in the connection process. There is a forward and aft shrouded (to prevent accidental activation) push button for each wire connection that can be operated individually or simultaneously with a simple plastic tool or ball point pen tip. Up to eight wires can be electrically connected in a single connector body which will support any combination of wire gauges from 18AWG up to 26 AWG. Wires can be removed or replaced up to 5 times so there is no need to replace the connector in a new installation.

For more information about KYOCERA AVX Connectors, visit our connector portfolio or contact our technical support team.

• High spring force top contact provides a lance type retention to capture and retain the wire
• Shrouded dual push button activation for easy wire insertion/removal
• Accepts 18-26AWG Solid and Stranded wires; any combination

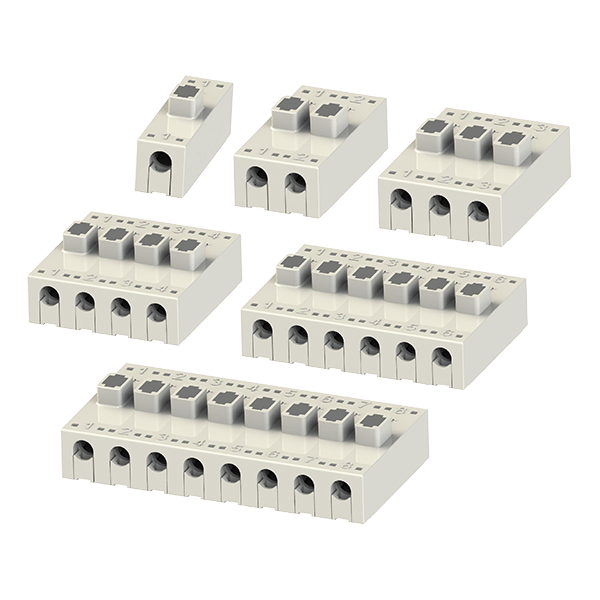

• Expanded size offering to maximize application potential; 1, 2, 3, 4, 6 & 8 positions
• Optional mounting tape to secure in panel mounting applications
• Molded in position numbers and schematic for easy identification

• Industrial/Machine Control; motors, solenoids,PLCs, pumps, valves, sensors, fans
• Commercial/Building; fixtures, fire, security, surveillance, blinds, sensors, controls
• Commercial/Industrial LED; retail, office, manufacturing, signage, displays
