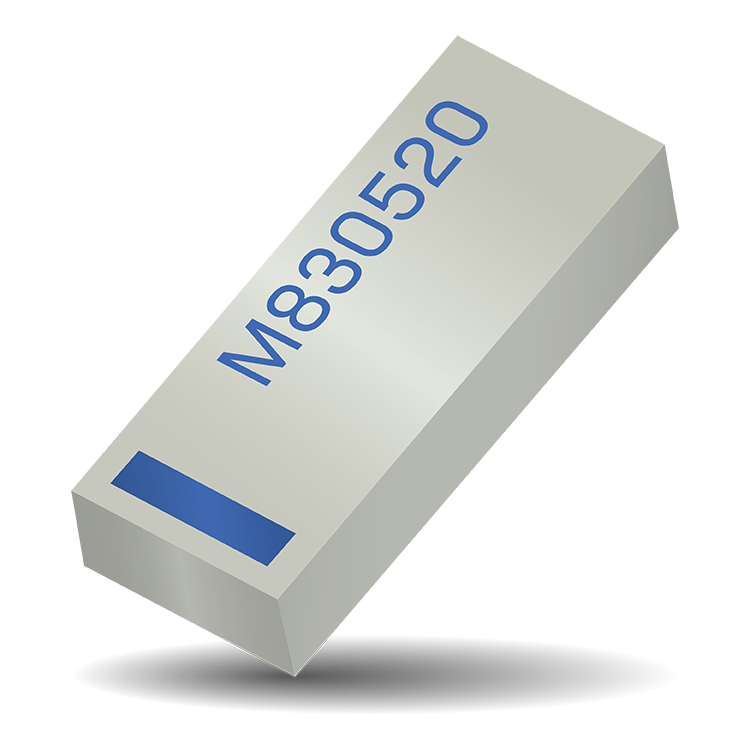

M830520 – WLAN / Bluetooth / Zigbee Embedded Ceramic Antenna

  • Antenna Type: Internal (On Board)
  • Technology: WiFi 6 / BT / WLAN / BLE / ZIGBEE
  • Band: 802.11 a/b/g/n/ac/ax
  • Frequency: 2400-2485 MHz / 5150-5850 MHz
  • Peak Gain:
    2400 – 2485 MHz = 1.0 dBi
    5150 – 5825 MHz = 2.6 dBi
  • Efficiency:
    2400 – 2485 MHz = 62%
    5150 – 5825 MHz = 56%
  • Size (mm): 8.0 x 3.0 x 1.3
  • Weight (grams): 0.2
  • Mounting: SMT

Antenna Part Number: M830520
Antenna Evaluation Board: M830520-01

Scroll Down to View Available Downloads:
- Application Note - DXF - Gerber - ME-FIT -

SKU: M830520 Category:


This series of Ceramic Isolated Magnetic Dipole™ (IMD) antennas deliver on the key needs of device designers for higher functionality and performance in smaller/thinner designs. These innovative antennas provide compelling advantages for a full WIFI dual band enabled handheld devices, media players and other mobile devices.

Real-World Performance and Implementation

Ceramic antennas may look alike on the outside, but the important difference is inside. Other antennas may contain simple PIFA or monopole designs that interact with their surroundings, complicating layout or changing performance with use position. These antennas utilize patented IMD technology to deliver a unique size and performance combination.

Greater Flexibility

The first-in-class IMD technology enables you to develop designs that are more advanced and that deliver superior performance in reception critical applications.

Available Downloads

Additional Downloads Available

Below Options are available upon request:

  • HFSS

Please contact eth.info@avx.com to request the additional downloads available
