High Voltage MLC Radials (SV Style) – (Stacked/Leaded)

SV High Voltage
Features & Benefits
  • Voltage Range: 600V to 5000V (NP0/C0G, X7R, and N1500 dielectrics available)
  • Capacitance Range: 10pF to 3.9µF
  • Hi-rel screening option per MIL-PRF-49467, Subgroup 1 available
Typical Applications
  • Snubbers in high frequency power converters
  • Resonators in SMPS
  • High voltage coupling/DC blocking

High value, low leakage and small size are difficult parameters to obtain in capacitors for high voltage systems. KYOCERA AVX special high voltage MLC radial leaded capacitors meet these performance characteristics. The added advantage of these capacitors lies in special internal design minimizing the electric field stresses within the MLC. These special design criteria result in significant reduction of partial discharge activity within the dielectric and having, therefore, a major impact on long term reliability of the product. The SV high voltage radial capacitors are conformally coated with high insulation resistance, high dielectric strength epoxy eliminating the possibility of arc flashover.
The SV high voltage radial MLC designs exhibit low ESRs at high frequency. The same criteria governing the high voltage design carries the added benefits of extremely low ESR in relatively low capacitance and small packages. These capacitors are designed and are ideally suited for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage coupling/DC blocking.

Datasheet / Catalog

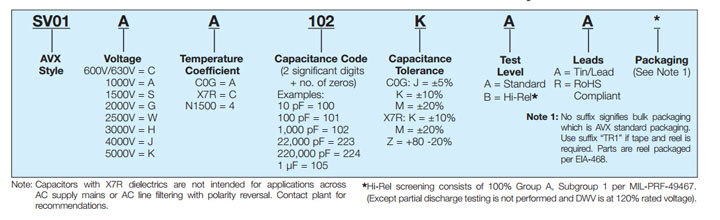

Part Number Information
