5047 Series | 0.5mm Pitch

Features & Benefits
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -25 to +85°C
  • Designed to have the strong resistance against torque forces on mating area to achieve the high reliability in the natural fall shock.

The 5047 Series are Board to Board Connectors featuring a stacking height of 5.0mm/7.0mm.These series feature Kyocera’s original receptacle contacts, realizing secure mating with a fine “click” feeling and high reliability. Designed for automatic mounting machines, packaged in tape and reel.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

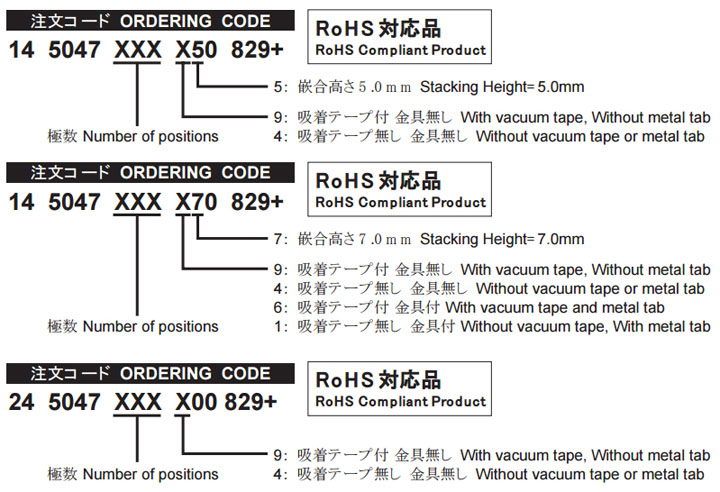

Part Number Information
Part Number Information

5047 Series
» Click to View

Technical Information
Technical Information – Click to Download
