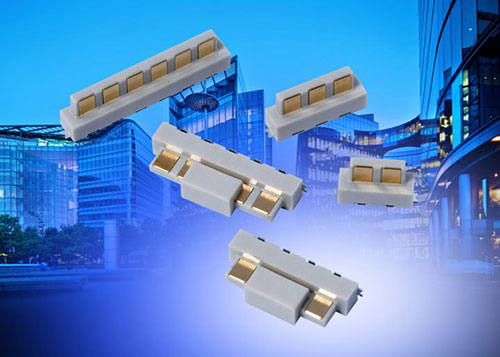

13-9159-100 Series | Perpendicular Mother/Daughter – Vertical Plug

Features & Benefits
  • Single sided SMT RoHS solder attachment
  • Centrally located pick & place cap for easy placement
  • Gold plated BeCu contact system for high reliability in harsh environments
  • Available in white: supports SSL market preferences
Typical Applications
  • Allows assembly of PCBs at right angles
  • Accepts 24-9159 IDC wired/cabled socket

This vertical plug connector opens up the spectrum to include all commercial, industrial and transportation applications requiring perpendicular PCB mating and latching Wire-to-Board cabled sockets with an already proven connector system. With sizes from 2p-6p, these gold plated contacts mate with high spring force beryllium copper receptacle connectors.

Datasheet / Catalog / Literature
Datasheet / Catalog – Click to Download
Literature – Click to Download
Part Number Information
Part Number Information

Vertical Plug: 13-9159
» Click to View

3D Models
3D Model – Click to View
  • Vertical Plug: 13-9159 – 3D Model – Coming Soon!
Application Notes
Application Notes – Click to View
