6284 Series | 0.5mm Pitch

Features & Benefits
  • Dual-sided contact improves workability in part approval process and allows easy equipment design.
  • Capable of multiple positions from 5 to 30.
  • Non-ZIF structure with staggered contacts
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +85°C

The 6284 Series are low profile, 0.5mm pitch, Non-ZIF connectors featuring a height of 1.5mm and width of 4.0mm. These products are cost friendly and can be utilized in versatile applications including downsized digital home electric appliances.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

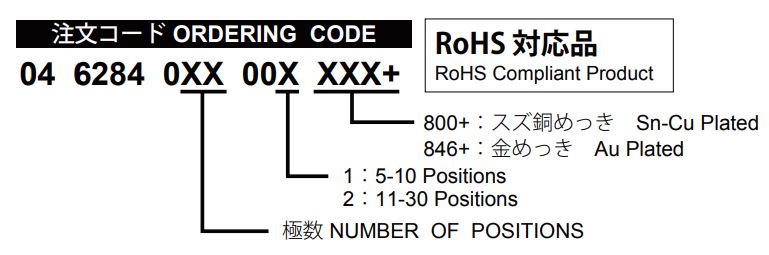

Part Number Information
Part Number Information

6284 Series
» Click to View

For More Detailed Information
Click to Visit Kyocera Electronics Website
