6808 Series | 0.5mm Pitch


Features & Benefits
  • Supports rated current of DC 4.0A/3contacts.
  • Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts.
  • Packaged in tape and reel: 5,000 pieces/reel
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -40 to +85°C

The 6808 Series are FPC Connectors for batteries, featuring a pitch of 0.5mm, right angle, and height of 1.5mm. Dual-sided contacts with both top and bottom contacts contribute to fewer restrictions in FPC or PCB layouts. Back locks are adopted in these connectors, thus strengthening resistance to tensile force and realizing high contact reliability against vibrations and drop shocks.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

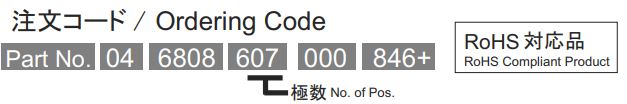

Part Number Information
Part Number Information

6808 Series
» Click to View
