6815 Series | 0.5mm Pitch


Features & Benefits
  • Provides a secure “click” feeling when locking / unlocking the actuator
  • Meets the maximum speed specified in next-generation interfaces
  • Packaged in tape and reel: 3,000 pieces/reel
  • RoHS compliant product
  • Contact Material: Copper alloy
  • Insulator Material: Heat resistance plastic

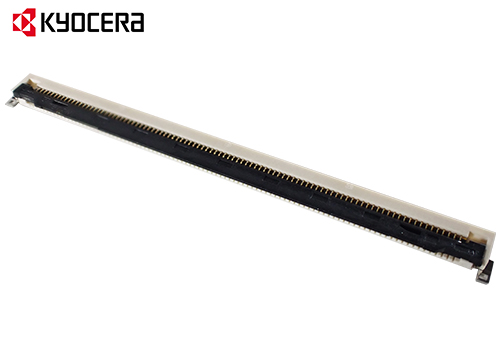

The 6815 Series is FPC/FFC connectors for high-speed transmission featuring a pitch of 0.5mm and height of 1.90mm. This Series optimizes high-speed data transmission for high definition images and features up to 100 pins which is the world’s highest*1 pin count. The higher pin-count can reduce the total number of connectors required, allowing for space saving simplification of the circuit design and reducing the labor requirement for connector insertion and mounting.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

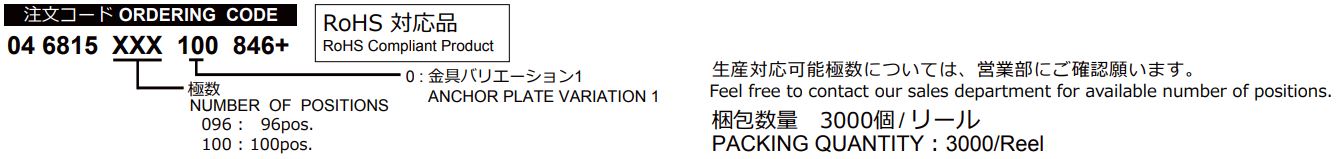

Part Number Information

Part Number Information

6815 Series
» Click to View
