9257-100 Series | Mini I/O, 12P

Features & Benefits
  • No latching required due to the click design of the contacts
  • Optional customization of the overmold cover
  • Compact size to optimize PCB real estate
  • Metal outer cover provides integrated PCB location and solder tab
  • Positive alignment and orientation of the plug and socket
Typical Applications
  • Medical Electronics
  • Cellular Phones
  • Industrial Modules
  • Hand Held Devices

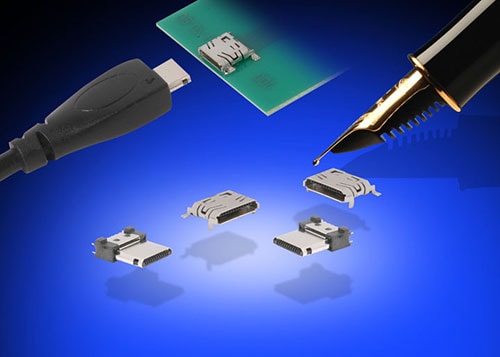

KYOCERA AVX offers the 12 way mini I/O connector as a standard product. The fixed SMT socket is designed to be mounted on a PCB and housed within a portable device. The plug is designed for cable termination with options of single and double sided contacts. Parts can be supplied as connectors only for sub contract termination, or with a custom overmold cover. The socket connector houses 12 contacts in a single row on 0.50mm pitch.

Datasheet / Catalog

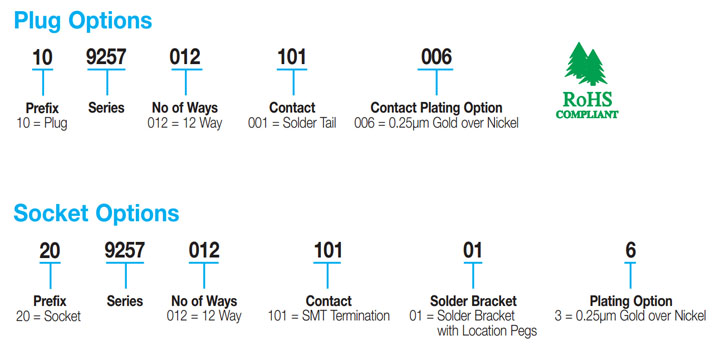

Part Number Information
Part Number Information
