8005 Series | Miniature Wire to Board Connectors

Features & Benefits
  • Equipped with an insulator locking structure
  • Right angle receptacle is a low profile type featuring a height of 1.9mm on the board.
  • Contact Material: Copper alloy
  • Insulator Material: Heat-resistant plastic
  • Operating Temperature Range: -55 to +80°C

The 8005 Series are super compact, 2-pin Wire to Board Connectors designed for high-density mounting. These products are most suitable for miniaturization of hand-held devices such as mobile phones, notebook PCs, etc.

Datasheet / Catalogs
Datasheet / Catalogs – Click to Download

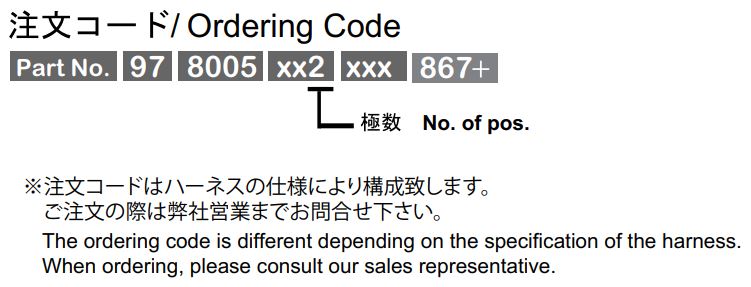

Part Number Information
Part Number Information

8005 Series
» Click to View
