DC Filtering – FB (RoHS Compliant)

DC Filtering – FB (RoHS Compliant)
Features & Benefits
  • Voltage Range: 450V to 1200V
  • Capacitance Range: 0.68uF to 75uF
  • Operating temperature range: -40°C to +100°C
Typical Applications
  • Particularly designed for DC filtering
  • Low reactive power

The FB series uses a non-impregnated metallized polypropylene dielectric specially treated to have a very high dielectric strength in operating conditions up to 100°C.

The FB has been designed for printed circuit board mounting. FB series performance characteristics make them a viable alternative to aluminum electrolytic technology due to much lower ESR and much higher surge voltage capability (dv/dt).

Datasheet / Catalog
Technical Information
Technical Information – Click to Download

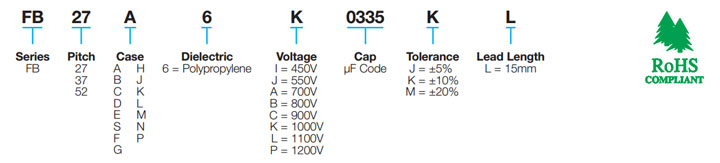

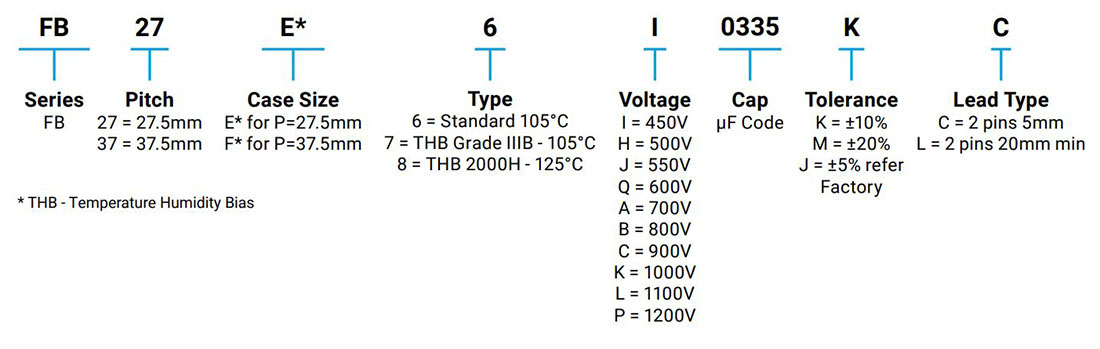

Part Number Information
Part Number Information

FB (RoHS Compliant)
» Click to View

Technical Papers
Technical Papers – Click to Download
