AC Filtering & Protection – FV-X2

Features & Benefits
  • Self-healing properties
  • High moisture resistance
  • Over voltage stress withstanding
  • Excellent active and passive flame resistant abilities
  • Widely used in across-the-line, interference suppression circuit, etc
Typical Applications
  • The FV capacitor is suitable for Across-the-line, EMI Filters
  • Capacitance Range: 0.01uF ~ 10.0uF
  • Capacitance Tolerance: ±10% (K), ±20% (M)
  • Frequency: 50Hz, 60Hz
  • Insulation Resistance: > 15,000MΩ (≤ 0.33uF) > 5,000MΩ (> 0.33uF)
  • Dielectric Strength: 1312VDC for 60sec. or 2000vdc for 2sec

FV are non-inductively wound with metallized polypropylene film as dielectric and electrode, encapsulated in solvent resistant and self – extinguishing UL94v0 thermoplastic case, with epoxy resin sealed. They provide interference Suppression with safety approvals. They are suitable for Across-the-line Capacitors, EMI Filters, Spark-Killer Circuits, etc.

Datasheet / Catalog
Technical Information
Technical Information – Click to Download

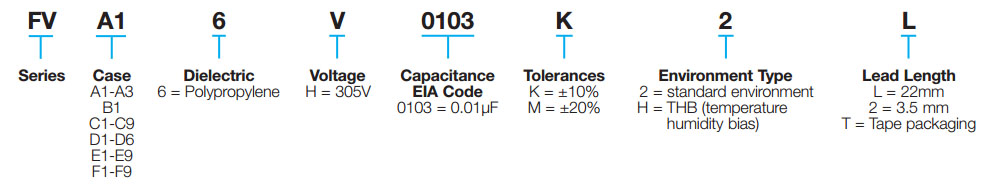

Part Number Information
Part Number Information

FV-X2 (RoHS Compliant)
» Click to View
