Thin Film – Accu-L® 0201 Tight Tolerance


Features & Benefits
  • Inductance: 0.33 to 3.3 nH
  • Tightest Tolerance: ±0.05 nH
  • DC Current: 150 to 550 mA
Typical Applications
  • Mobile Communications
  • Satellite TV Receiver
  • GPS
  • Vehicle Location Systems
  • Wireless LANs
  • Filters
  • Matching Networks

The L0201 SMD Tuning Inductor is based on thin-film multilayer technology. The technology provides a miniature part with excellent high frequency performance and rugged construction for reliable automatic assembly. Thin film inductors featuring extreme lot-to-lot repeatability and tight tolerance. The use of very low-loss dielectric materials, silicon dioxide and silicon oxynitride, in conjunction with highly conductive electrode metals results in low ESR and high Q. These high-frequency characteristics change at a slower rate with increasing frequency than for ceramic microwave inductors. Because of the thin-film technology, the above-mentioned frequency characteristics are obtained without significant compromise of properties required for surface mounting.

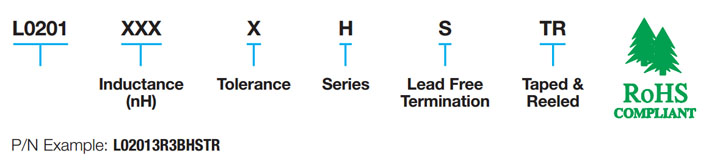

Part Number Information
Part Number Information

Accu-L® 0201 Tight Tolerance
» Click to View

Design Tools
S2P Files – Click to Download
Modelithics
Modelithics
KYOCERA AVX and Modelithics have partnered to offer FREE 90-Day trials of highly accurate, scalable advanced simulation models for various KYOCERA AVX parts including this part as well as Attenuators, Capacitors, Couplers, Inductors, Diplexers, Resistors.
Use Promo Code: AVXWP
