Dual & Multi-Cap Arrays | GHB, GM, GA Series

Features & Benefits
  • Up to 6 capacitors on one ceramic substrate
  • Wide variety of dielectrics
  • High self resonance
Typical Applications
  • Broad-band bypass applications where circuit board layouts can utilize configurations

KYOCERA AVX Multi-Cap Arrays can be manufactured with 2, 3, 4, 5 or 6 capacitors on one single layer ceramic substrate. These arrays are available in our X7S (Z), Maxi and Maxi+ family of GBBL dielectrics and offer a broad range of capacitance values. Additionally, the dual-caps are available to match micro strip widths as dictated by circuit considerations. When mounted with the individual pads down, the need for wire bonding is eliminated.

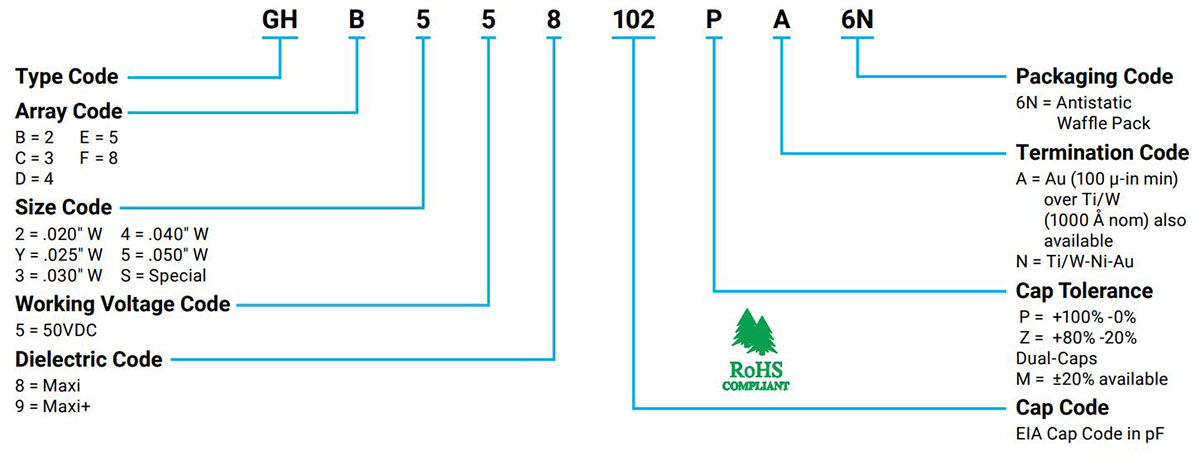

Part Number Information

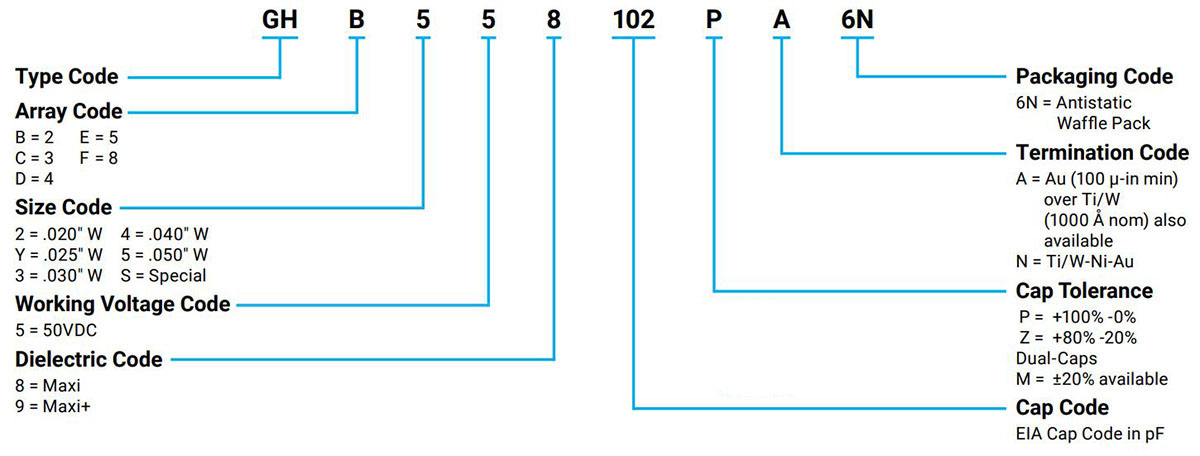

Part Number Information

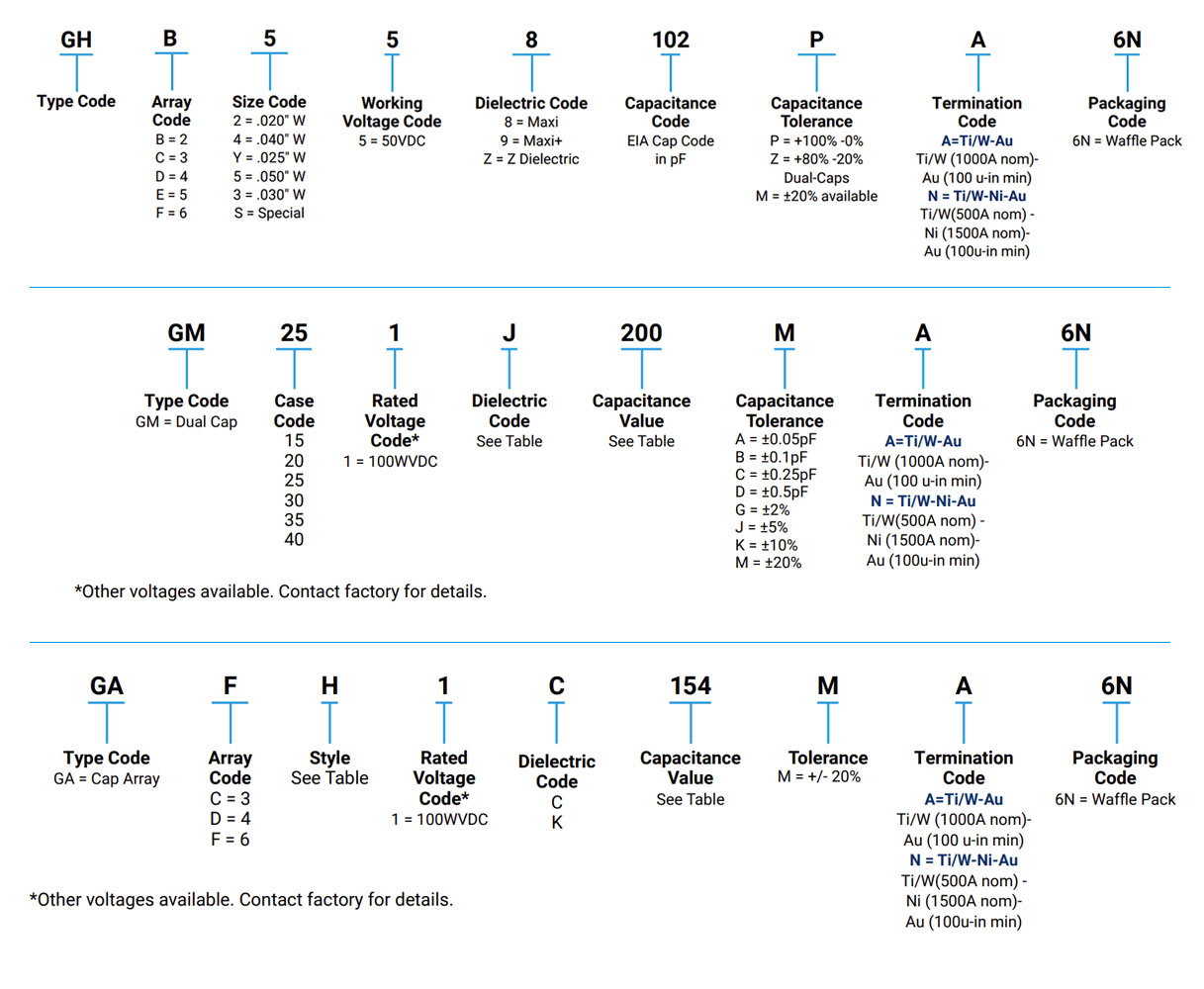

GHB, GM, GA Series
» Click to View
