High Pass 2816 (LGA) Thin Film Filters

HP2816 High Pass Filters
Features & Benefits
  • Small size: 7x4x1.2mm (LxWxT)
  • Characteristic impedance: 50Ω
  • Frequency: 1000MHz
  • Operating/Storage temp:
    -40°C to +85°C
  • Low profile
  • Steep attenuation
  • Rugged construction
  • Taped and reeled
  • RoHS compliant
Typical Applications
  • Mobile Communications
  • Satellite TV receivers
  • Vehicle location systems
  • Wireless LANs

The ITF LGA Filter is based on thin-film multilayer technology. The technology provides a miniature part with excellent high frequency performance and rugged construction for reliable automatic assembly.

The ITF Filter is offered in a variety of frequency bands compatible with various types of high frequency wireless systems.

Datasheets / Catalog

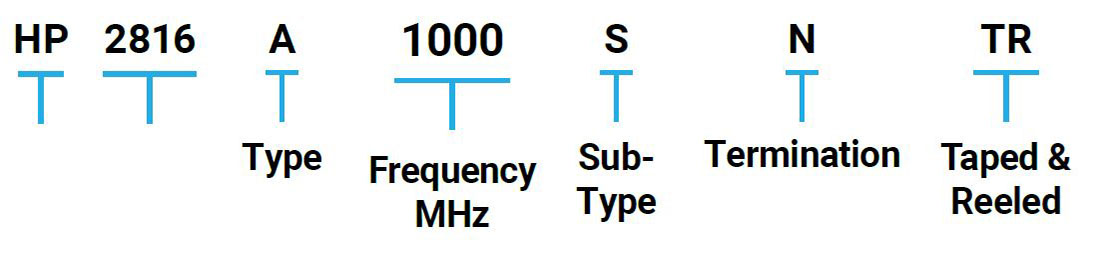

Part Number Information
Part Number Information

HP2816 High Pass Filter
» Click to View
