LP0805 Type Harmonic


RF Filters
Features & Benefits
  • Low Profile
  • Low Parasitics
  • Better Heat Dissipation
Typical Applications
  • Mobile Communications
  • Satellite TV Receivers
  • GPS
  • Vehicle Location Systems
  • Wireless LANs

The Low Pass 0805 ITF (Integrated Thin-Film) SMD Filter is based on thin-film multilayer technology. The technology provides a miniature part with excellent high frequency performance and rugged construction for reliable automatic assembly.

These ITF Filters are offered in a variety of frequency bands compatible with various types of high frequency wireless systems.

Datasheet / Catalogs

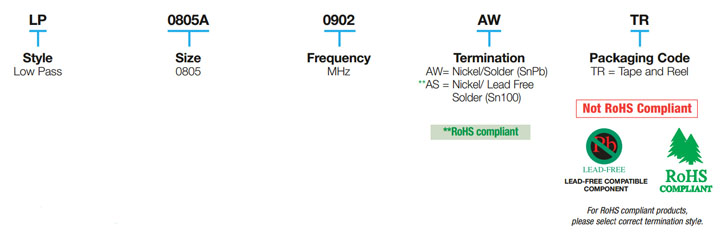

Part Number Information
Part Number Information

LP0805 Type Harmonic
» Click to View

Design Tools
S2P Files – Click to Download
Libraries – Click to Download

AVX also works with several of the most popular software vendors to ensure our products are up to date in their software, and are constantly working with new vendors to ensure that they have the most up-to-date AVX libraries. These libraries are available below and can be added to your software.

Software – Click to Download
