Accu-Guard® II Low Current Fuses (SMD)

Features & Benefits
  • Operating temperature: -55°C to +125°C
  • Insulation resistance: >20MΩ guaranteed (after fusing at rated voltage)
  • Interrupting rating: 50A

Accu-Guard® II is a version of Accu-Guard® fuses for a wider range of current and voltage ratings. Constructed on alumina substrates, Accu-Guard® II fuses display superior electrical, mechanical and environmental properties. Accu-Guard® II dimensions are standard 0402, 0603, 0805, 1206 and 0612 chip sizes.

Datasheet / Catalog

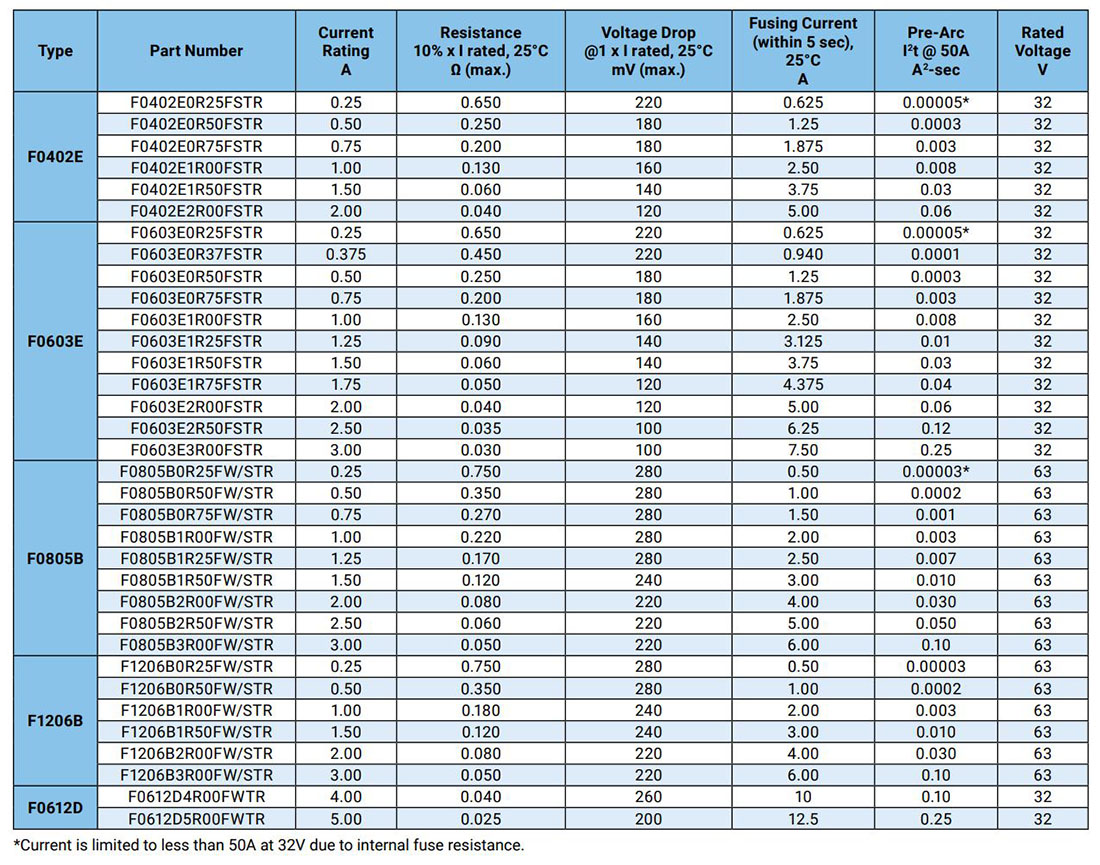

Part Number Information
Part Number Information

Accu-Guard II Low Current Fuses (SMD)
» Click to View
