10-9296 Series | Board to Board (BTB) Jumper


10-9296 Series
Features & Benefits
  • Absorption of PCB and module mating tolerances by allowing the unrestricted pin to pass through the contact by eliminating the traditional wire stop
  • Two different pin lengths to accommodate board-to-board and module-to-module connections
  • The unique geometry of the insulator lends itself to water tightness when matched with a corresponding housing cavity
Typical Applications
  • Designed to mate with 709296001025016 horizontal PCB contact
  • Single pin connection between linear PCB’s
  • 38mm pin allows for modules to be connected where the PCB is recessed within the plastic housing.

Developed in conjunction with the 2.5mm STRIPT™ contact from KYOCERA AVX, this new system provides additional mating tolerance absorption over traditional connector systems in linear or coplanar applications. By designing the 709296001025016 contact without a wire stop, the pin header is allowed to pass straight thru the contacts until the final seating/mating dimension is achieved. Allowing for internal pin clearance, boards and modules can be plugged together without worrying about potentially critical tolerance stack-up issues.

Datasheet / Catalog
Datasheet / Catalog – Click to Download

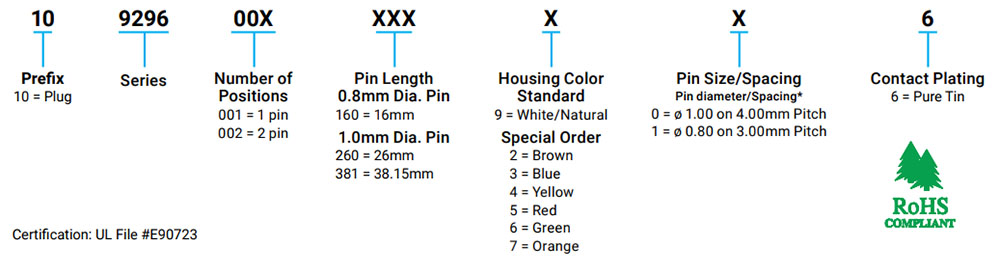

Part Number Information
Part Number Information

BTB Jumper: 10-9296
» Click to View

3D Models
3D Model – Click to View
